Dorner

Dorner is a Leader in the design, applications, manufacturing, and integration of conveyor systems. Companies from over 1,200 different industries worldwide turn to Dorner to achieve improved efficiency, productivity, and a positive ROI. Dorner offers the broadest range of unit handling conveyors in the world, moving everything from machined parts to raw food products

1100 Series Miniature Conveyor

The 1100 Series conveyor platform is the industry’s smallest conveyor with a compact design featuring a 3/4″ frame height. This low profile enables the conveyor to fit into the tightest of spaces, freeing up valuable machine or worker space.

Small or light weight product movement
Small part transfers
Tray handling
Pill package handling
Package labelling
Pharmaceutical Applications
Life Science Applications
Medical Applications

2200 Series Conveyors

2200 Series low profile, high performance fabric and modular belt conveyors feature a high speed nose bar transfer option, a durable single piece frame design, universal T-slots, and a wide range of belting and guiding options. The 2200 Series Line is engineered for small to medium sized parts, precision applications and flexible layouts.

Small to Medium Part Handling
Transfers
Accumulation
Precision Parts Movement
Part Incline/Decline Routing (Z Frames)
Positioning
Automated and Manual Assembly

2700 Series Medium Duty Conveyors

Featuring an increased weight rating and extended maximum width, the 2700 Series Medium Duty is designed for medium load conveyance in material handling and eCommerce applications. This conveyor includes v-guiding and precision belt tracking to eliminate belt sway even when the conveyor is wider than it is long.

The lightweight aluminum frame design makes the 2700 ideal for AGV/AMR applications and can carry a heavier payload without weighing down the robot. The increased width and low profile mounting also allow this conveyor to fit into smaller spaces while maintaining the strength needed to convey larger products.

3200 Series Heavy Duty Conveyors

3200 Series heavy duty, low maintenance conveyors that are ideal for medium to heavy sized parts, precision applications, bulk handling and both automated and manual assembly. Available in both fabric and modular belts, 3200 Series Conveyors are designed for high speeds, long runs and up to 4 curves per conveyor.

The Heavy Duty 3200 Series conveyor is available i3 formats: Flat Belt End Drive, Cleated Belt End Drive, and Center Drive models.

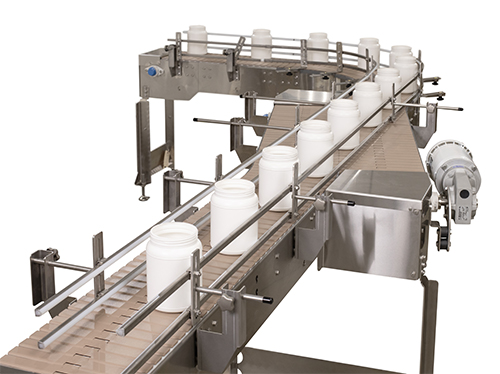

AquaGard & AquaPruf Conveyors

Dorner’s AquaGard and AquaPruf platforms take food handling conveyors to a whole new level. Designed for fast and effective sanitation and protection from contamination. They are engineered to promote hygienic design while meeting the sanitary standards of the Baking Industry Sanitary Standards Committee (BISSC), National Sanitation Foundation (NSF), 3A, USDA and other FDA regulations. These models can be disassembled in less than 2 minutes without tools for effective sanitation with less downtime, making them 100% accessible for cleaning in seconds.

AquaGard Conveyors are designed for dry wipe-down and low-pressure wash applications.

AquaPruf is for high-pressure and chemical washdowns, these conveyors are designed for the highest level of sanitation.

Precision Move Pallet System Conveyors

Dorner’s Pallet System conveyors simplify product flow and control with features such as a unique pin tracking system, industry compatible pallet sizes and innovative modules. 2200 Series Precision Move Pallet System conveyor and the SmartFlex Pallet Systems are advanced in pallet traffic management and are specifically designed to increase efficiency, reduce downtime in automation processes, and provide the accurate conveying.

Manual and automated assembly
Product routing and control
Product inspection and testing
Assembly automation

SmartFlex Spiral Conveyors

When floor space is tight and applications call for product to be moved up or down, Dorner’s trio of SmartFlex curve conveyors are the perfect answer.

The SmartFlex Helical Curve, Spiral, and Alpine conveyors greatly expand the capabilities of Dorner’s SmartFlex line by giving customers the ability to move product up or down and around equipment to accommodate tight spaces.

Dorner’s SmartFlex line is a flexible conveyor platform that reduces costs, saves time and offers simple configuration and acquisition options to Dorner’s customers within the packaging, medical, health and beauty, industrial automation and electronic industries.

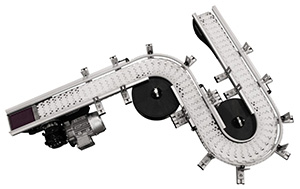

FlexMove Conveyors

The modular design of the FlexMove Conveyor along with the building blocks of drive, corner, vertical bend, etc. provide unlimited possibilities for conveyor confi gurations and applications.

FlexMove is capable of multiple curves as well as inclines and declines on a single conveyor. Powered transfers allow for smooth end transfers for products as small as 3” in diameter.

Lengths: 0.6m to 30m (2ft to 98ft)
Loads: Up to 272 kg (600 lbs)
Speeds: Up to 76mpm (250 fpm)
Standard widths: from 45mm to 260mm

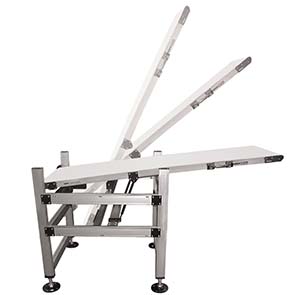

Conveyor Lift Gate

Dorner's 2200 & 3200 Series Lift Gate Conveyors create safe and fast walk-through access while maximizing usable space.

Creating Safe and Fast Walk-Thru Access to Maximize Useable Space Counterweights create easy opening of the gate Interlock switches and a timer allow the conveyor to clear before the gate is opened preserving full product control Product flow can automatically resume after the gate is closed.

With a typical lift gate conveyor, the entire conveyor pivots using the motor as a counter balance and a gas strut to assist in the lifting process. The SmartFlex lift gate pivots only a portion of the conveyor. There is an area on the belt return that allows for extra chain needed during the pivoting process.

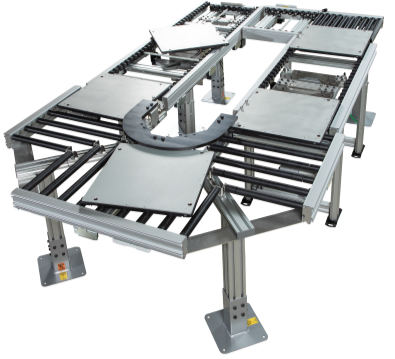

ERT 250 Edge Roller Conveyor

Dorner's precision edge roller pallet and tray handling conveyors provide efficient, non-contact zoning for medium & heavy load assembly automation applications. They feature a clean, open roller design and are ISO Class 4 approved for cleanrooms.

The ERT 250 is built for cleanroom applications such as medical product and device manufacturing, assembly, and packaging, as well as medium-large heavy load assembly automation applications.

Widths 120 mm to 960 mm wide
38 mm diameter rollers on 50 mm centers
Loads up to 250 pounds per pallet or tray
Loads up to 15 pounds per roller
150 mm minimum long tray
Speeds up to 30 m (100 feet) per minute
Aluminum frame with two T-slots
Energy efficient brushless DC gearmotors and controllers; motor controllers use Ethernet IP for easy communication
Reversible
